Clear images through trinocular port and eyepieces simultaneously
3.5X-90X zoom magnification power; 2-1/2" (65mm) wide area view; 8" (200mm) working distance

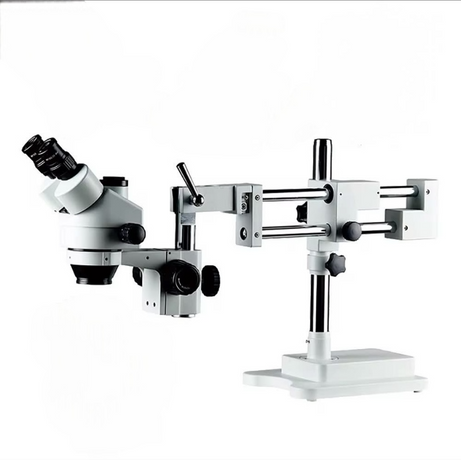

3D dual arm boom stand allows you to point the microscope head in any direction you want
3MP USB 2.0 digital camera for photos and videos on Windows, Mac and Linux
Feature
Explanation
Optical System
Simul-focal optical system provides simultaneous observation with eyepieces and trinocular port. Clear images can be obtained through eyepieces with a computer or video screen.
Wide Field Eyepiece
The 30mm super widefield 10X eyepiece delivers sharp stereo images and provides high-resolution, original color images.
Boom Stand
Versatile heavy duty double arm boom stand covers large working area and features 3 degrees of freedom design allowing the microscope head to be pointed in any direction.
Zoom Magnification Range
It offers a continuous zoom magnification range of 3.5X-90X (26:1), a 45-degree inclined microscope head, and a large working distance of 8" (200mm).
Trinocular Tube and Camera
The upright trinocular tube can be used to mount digital cameras, camcorders or CCD videos.
Diopter and Interpupillary Adjustment
Both ocular tubes with adjustable diopters, interpupillary distance and interpupillary distance settings provide comfortable observation without fatigue.
Material and Warranty
All metal mechanical components feature stain resistant enamel and a sturdy solid cast steel base. It is manufactured in accordance with the ISO 9001 quality control standard and has a five (5) year factory warranty.
Sensor
Aptina MT9T001 CMOS sensor
Sensor Size
6.55x4.92mm
Resolution
3.1MP
Fps (Frame Rate)
8@2048x1536, 22@1024x768, 43@680x510
Sensibility
1.0V/lux-sec
Compatibility
Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Features
Operating System Requirements
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements
Intel Core2 2.8 GHz or comparable processor, 2 GB RAM, USB2.0 port
